Applications
The DIC systems from Correlated Solutions excel in every imaginable application.
Our digital image correlation (DIC) systems have been implemented successfully in a wide range of applications from automotive to biological, and size scales from microscopy to large structures. All DIC systems are sold as turnkey solutions, which are customized to your measurement needs. Our systems include all hardware, software, technical support, onsite installation, and equipment training. We are dedicated to providing our customers with quality technical support and free software upgrades for one year after the date you receive your system.

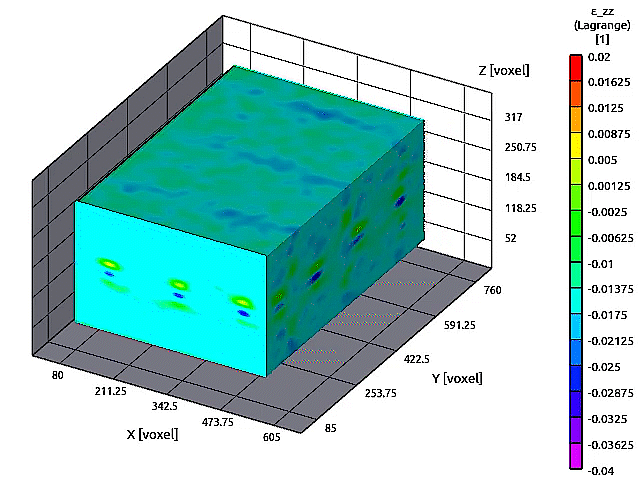

Measuring 3D Volume of Reinforced Rubber Matrix Composite
A reinforced rubber matrix composite is mounted between two grips, and a set of reference images are acquired from a CT scanner at know increments. Each ‘slice’ of data is then analyzed to compute a static volume measurement. After the specimen undergoes a tensile load, images are acquired again by the CT scanner at the same locations.
VIC-3D Stereo Microscope & Capacitor Chip Assembly
The VIC-3D Stereo Microscope System The VIC-3D stereomicroscope system enables local analysis within very small elements. One industry that benefits from this small field imaging is microelectronics.
Thermomechanical Response Measurement on Composites Using Infrared Thermography and DIC
Understanding thermo-mechanical behavior of material can be a vital component when designing vehicles and structures that may become exposed to high temperatures. Virginia Tech’s Extreme Environments, Robotics, and Materials (ExtReMe) Laboratory focuses on the impact of extreme environments on materials. This includes research that is focused on understanding the thermo-mechanical behavior of materials both during and following fires. Experimental investigations are performed to understand the evolution of the material due to elevated temperature.
Ultra-High-Speed, Super Dynamic Bend Test
The turnkey system from Correlated Solutions includes two Shimadzu HPV-X2 cameras which are conveniently controlled with Correlated Solutions’ software VIC-Snap UHS. The images are acquired during the event, downloaded, and then post-processed with VIC-3D.
